Curve 19

curve19.xml

Concept

In this case we are limiting the "OUTPUT" position to the clipper window range of the "INPUT" position. The output from the "INPUT" clipper window is driving the importance of the "Range Input" and of the "OUTPUT". The "Range Input" is inverted through a "Reverser" whose impact is doubled.

In this case, nothing happens below the bottom of the "INPUT" lower clipper value. Then as the "INPUT" rises through the clipper window, both the "Range Input" and the "OUTPUT" importance values increase. Because the impact of the "Range Input" is reversed, it has less and less impact on the "OUTPUT".

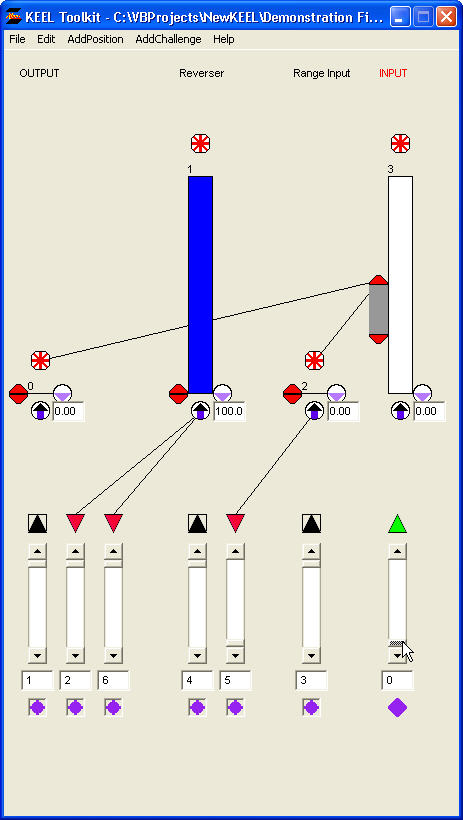

Design

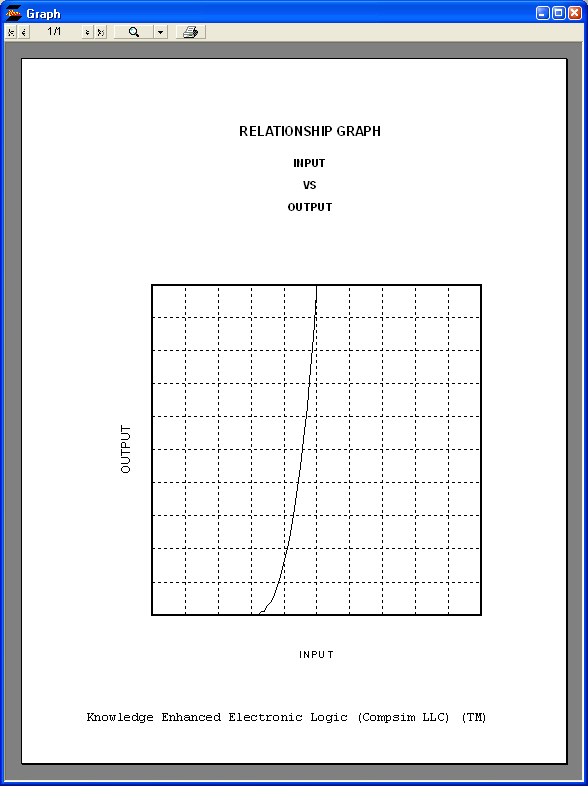

Output

Output
