Curve 18

curve18.xml

Concept

This is an inverted version of Curve 17. It is restricted to a limited range. In this case, we are using the clipper window of the "INPUT" position to drive the "Range Input" and the "Intermediate OUTPUT 2" importance. The "Intermediate OUTPUT 1" and "Intermediate OUTPUT 2" are combined in the "Accumulator" position and inverted in the "OUTPUT" position (which takes the form of a "reverser").

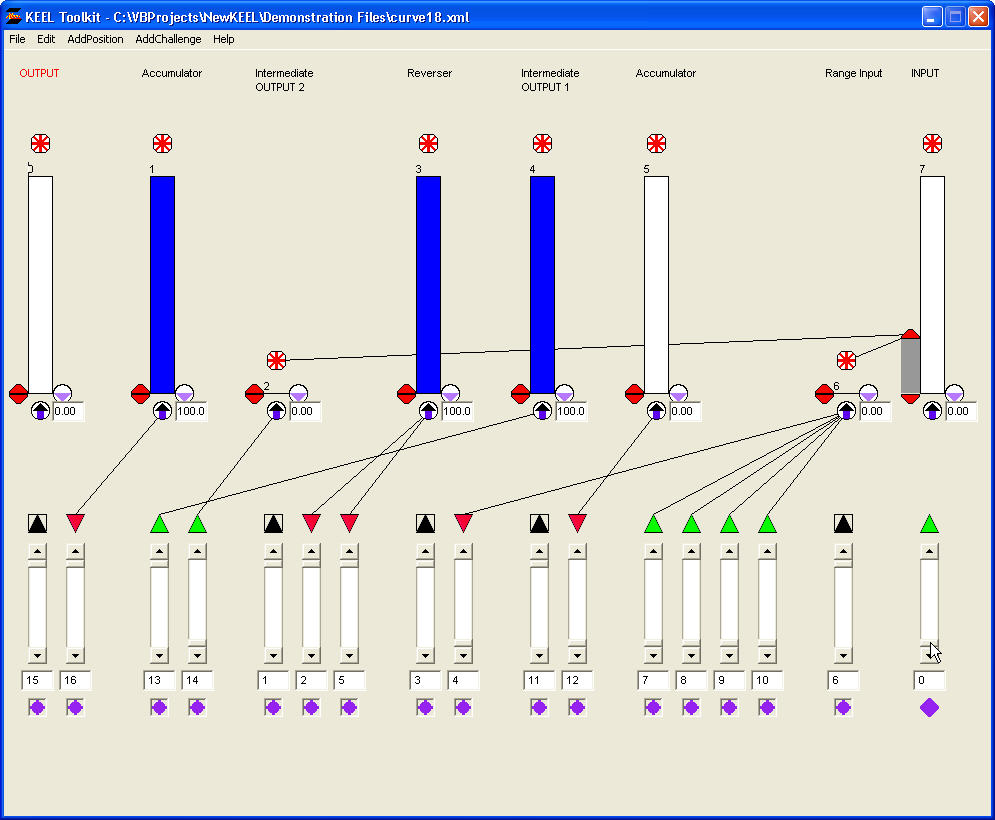

Design

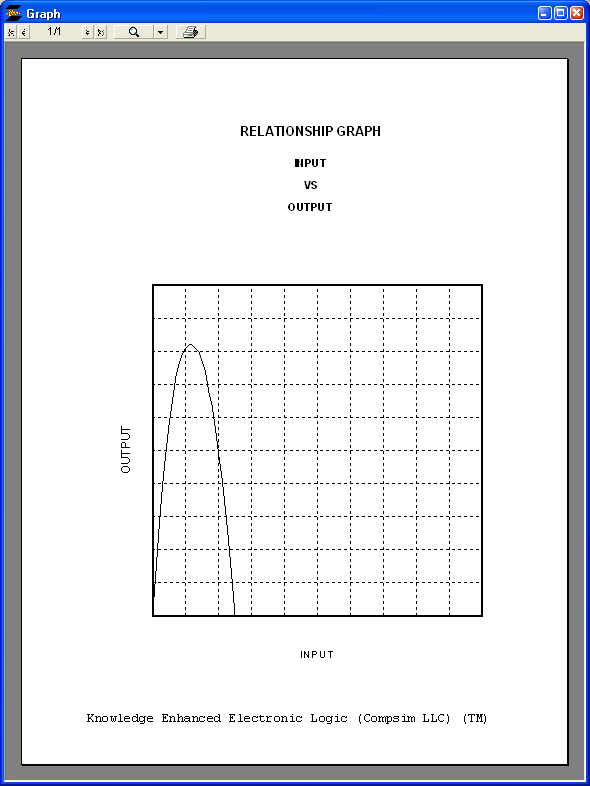

Output

Output
